$4,450.00

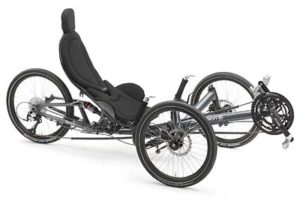

Good to know you can lean back and relax, even on bad roads. With the new, foldable touring-trike Scorpion fs our engineers combined a full suspension chassis technique derived from modern automotive technology with the award-winning design of our Scorpion trikes.

Description

BRC: A fully suspended trike with all 20″ or 20/26″ configurations.

HPV: The low seat position and a significantly higher bottom bracket emphasize the sportive attitude of this agile ride. You can feel the results of this masterpiece of finest German engineering immediately when cutting the first corner: a synthesis of perfect roadholding and a maximum of “Fahrvergnügen”.

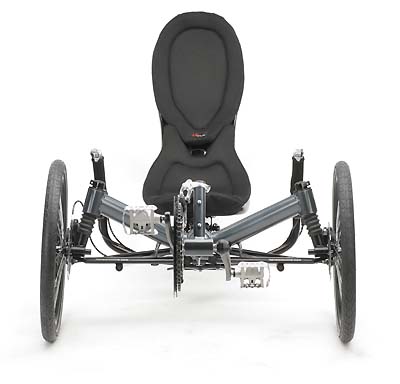

 Long wheelbase, straight lines, easy rolling 20″ wheels and integrated independent suspension – the dynamic appearance of the Scorpion fs leaves a long lasting impression.

seat height 29 cm / 11 1/3″ BodyLink seat
32 cm / 12 1/2″ ErgoMesh seat
40 cm / 15 2/3″ ErgoMesh HS seat
pedal axle height 40–45 cm / 16″
suspension travel 6 cm / 2 1/3″ front
8 cm / 3 1/8″ rear
No-Squat-Design
seat HP BodyLink seat
angle and length adjustable
or ErgoMesh seat
seat angle 32–41°
wheel size 20″ (ISO 406)
max. tire width 5 cm / 2″
wheelbase 111 cm / 43 2/3″
track width 78 cm / 30 3/4″
width 83 cm / 32 3/4″
length 172–206 cm / 67 2/3″–81″

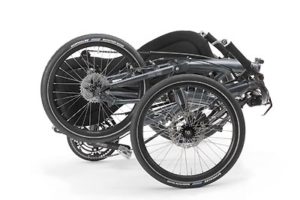

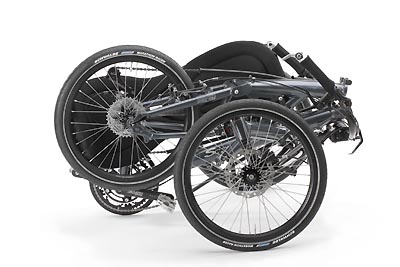

size folded 90x83x63 cm
size dismantled 90x74x46 cm
turning circle 5,4 m
diameter
bottom bracket BSA 68 mm
weight from 17,6 kg / 39 lbs incl. pedals
max load 130 kg / 286 lbs
frame Aluminium 7005T6 heat treated
suspension pivot maintenance free
finish
phosphated and
powdercoated
blue shade grey
pearl orange
custom colour
rider height min. ca. 1,62 m / 5’5″
max. ca. 2,00 m / 6’7″
X-Seam min. 0,855 m*
X-Seam max. 1,21 m
frame warranty 10 years*with short cranks and BodyLink seat for small riders

Starting at $4450.
